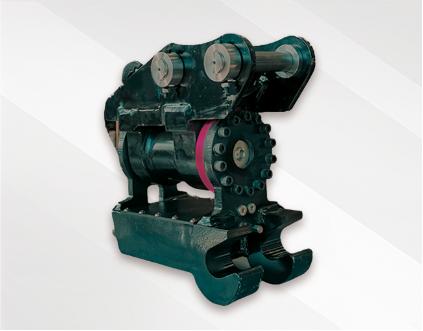

Tilt quick hitch is a specialized connector for excavators that allows for rapid attachment changes and provides a tilting function, enhancing operational efficiency, flexibility, and precision in complex working environments.
Model | Drive Torque | Tilt Displacement | Necessary Flow | Excavator | Overall Dimension | Weight |
|---|---|---|---|---|---|---|
RSTH500 | 500NM | 0.627L/MN | 2-4Lpm | 0.8-2Ton | 477∗280∗567 | 50Kg |
RSTH900 | 900NM | 0.627L/MN | 2-4Lpm | 2-3Ton | 477∗280∗567 | 82Kg |
RSTH1600 | 1600NM | 0.627L/MN | 5-16Lpm | 3-5Ton | 477∗280∗567 | 120Kg |
RSTH3200 | 3200NM | 1.016L/MN | 5-16Lpm | 5-8Ton | 518∗310∗585 | 175Kg |
RSTH5000 | 5000NM | 1.52L/MN | 15-44Lpm | 8-12Ton | 582∗350∗649 | 248Kg |
RSTH7000 | 7000NM | 1.89L/MN | 15-44Lpm | 11-15Ton | 582∗350∗649 | 280Kg |
RSTH9000 | 9000NM | 2.3L/MN | 19-58Lpm | 15-23Ton | 720∗450∗784 | 413Kg |
RSTH15000 | 15000NM | 3.62L/MN | 35-105Lpm | 23-30Ton | 858∗500∗911 | 550Kg |

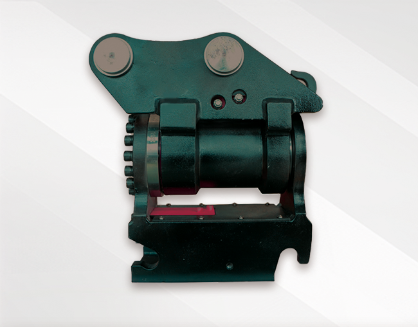

Tilt Quick Hitch-S is a durable excavator attachment that allows fast tool changes and tilting movement, offering greater flexibility and precision for demanding tasks.
Model | Quick Coupler | Machine Weight [ton] | Weight From [kg] | Building Height [mm] | Length [mm] | Cylinder Width [mm] | Tilt Degree | Pin Diameter [mm] | Max Width Dipper Arm [mm] | Pin Distance(cc-measure) [mm] | Oil Flow [L/min] | Max Pressure Separate AUX [bar] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
RSTH500-S30 | S30 | 0-2 | 28 | 162 | 263.6 | 224.1 | 180° | 25-35 | 125 | 85-180 | 5-10 | 175 |
RSTH900/1600-S40 | S40 | 2-6 | 95 | 368 | 276.4 | 237.4 | 180° | 35-45 | 160 | 130-270 | 9-28 | 210 |
RSTH3200-S40 | S40 | 5-7 | 145 | 384 | 280.4 | 240.4 | 180° | 35-50 | 200 | 235-345 | 15-30 | 210 |
RSTH3200-S50 | S50 | 5-7 | 190 | 440 | 371.4 | 314.4 | 180° | 45-60 | 230 | 235-365 | 15-30 | 210 |
RSTH5000-S45 | S45 | 5-12 | 210 | 445 | 338.1 | 394.6 | 180° | 45-60 | 230 | 220-365 | 19-58 | 210 |
RSTH7000-S50 | S50 | 5-12 | 210 | 481 | 404.5 | 346.5 | 180° | 45-60 | 230 | 220-365 | 19-58 | 210 |
RSTH9000-S60 | S60 | 12-20 | 360 | 515 | 463.5 | 387.5 | 180° | 60-80 | 334 | 300-460 | 26-78 | 350 |
RSTH15000-S70 | S70 | 18-24 | 620 | 625 | 507 | 422 | 134° | 60-80 | 400 | 270-485 | 35-105 | 350 |

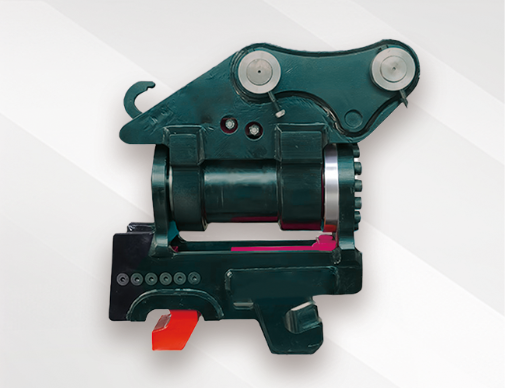

Tilt Quick Hitch-L is a heavy-duty excavator attachment designed for larger machines, enabling quick attachment changes with a powerful tilting function. It offers enhanced flexibility, precision, and efficiency for demanding operations such as grading, trenching, and site preparation.
Model | Excavator | Adapter | Tilt Degree | Drive Torque | Tilt Displacement | Tilt Necessary Flow | Necessary Flow |
|---|---|---|---|---|---|---|---|
RSTH500-L | 0.8-2Ton | MS/HS 01 | 180° | 500 NM | 0.627L/MN | 2-4Lpm | 15-25Lpm |
RSTH900-L | 2-3Ton | MS/HS 01/03 | 180° | 900 NM | 0.627L/MN | 2-4Lpm | 15-25Lpm |
RSTH1600-L | 3-5Ton | MS/HS 03 | 180° | 1600 NM | 0.627L/MN | 5-16Lpm | 15-25Lpm |
RSTH3200-L | 5-8Ton | MS/HS 03/08 | 180° | 3200 NM | 1.016L/MN | 5-16Lpm | 15-25Lpm |
RSTH5000-L | 8-12Ton | MS/HS 08/10 | 180° | 5000 NM | 1.526L/MN | 15-44Lpm | 15-25Lpm |
RSTH7000-L | 12-15Ton | MS/HS 08/10 | 180° | 7000 NM | 1.896L/MN | 15-44Lpm | 15-25Lpm |
RSTH9000-L | 15-23Ton | MS/HS 10/21 | 180° | 9000 NM | 2.3L/MN | 19-58Lpm | 15-25Lpm |
RSTH15000-L | 23-30Ton | MS/HS 21/25 | 134° | 15000 NM | 3.62L/MN | 35-105Lpm | 15-25Lpm |
